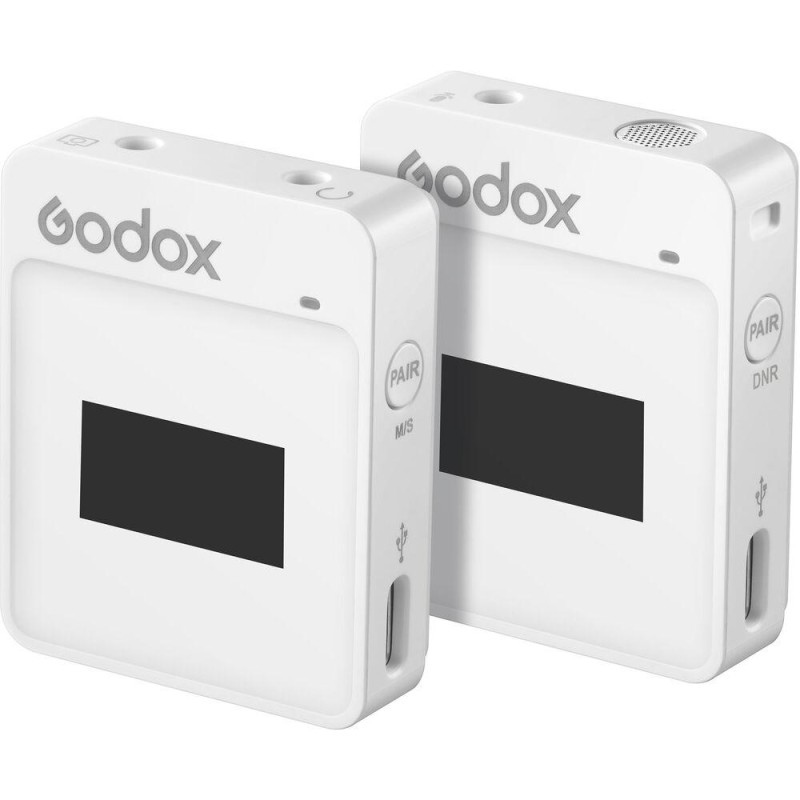

Godox MoveLink II M1 (Wit)

Godox MoveLink II M1 (White)
The Godox MoveLink II M1 provides a user friendly option for content creators, including vloggers, mobile journalists and YouTube and TikTok personalities, to enter the world of hands free wireless audio.


For a more discreet look, you can use the included lavalier microphone and connect it to the transmitter's 3.5mm input port. The receiver comes with a belt clip that can be mounted on cameras and the 3.5mm output allows you to connect to the 3.5mm input jack of your phone or camera.


You can easily record the sound of a subject on a camera or phone with a 3.5mm input jack. The M1 transmitter weighs about 258g, has a built in clip and an omnidirectional microphone, making it easy to attach to a lapel or shirt. The M1 offers a digital frequency hopping 2.4 GHz bandwidth system with a maximum range of 328'.


The system includes a 3.5mm TRS to TRS cable for use with DSLR/mirrorless cameras and a 3.5mm TRS to TRRS cable for use with compatible smartphones and mobile devices. The dual channel receiver makes it easy to add an additional transmitter.
Both the transmitter and receiver have internal rechargeable lithium ion batteries that can work all day and are charged via their USB Type C ports. The package also includes two USB charging cables and a windshield for the transmitter/microphone. ,

Wireless technology: 2.4 GHz
Diversity: frequency
Max Operating Range: 328.1' / 100 m
Dynamic range: 90 dBA
SNR: >70 dB

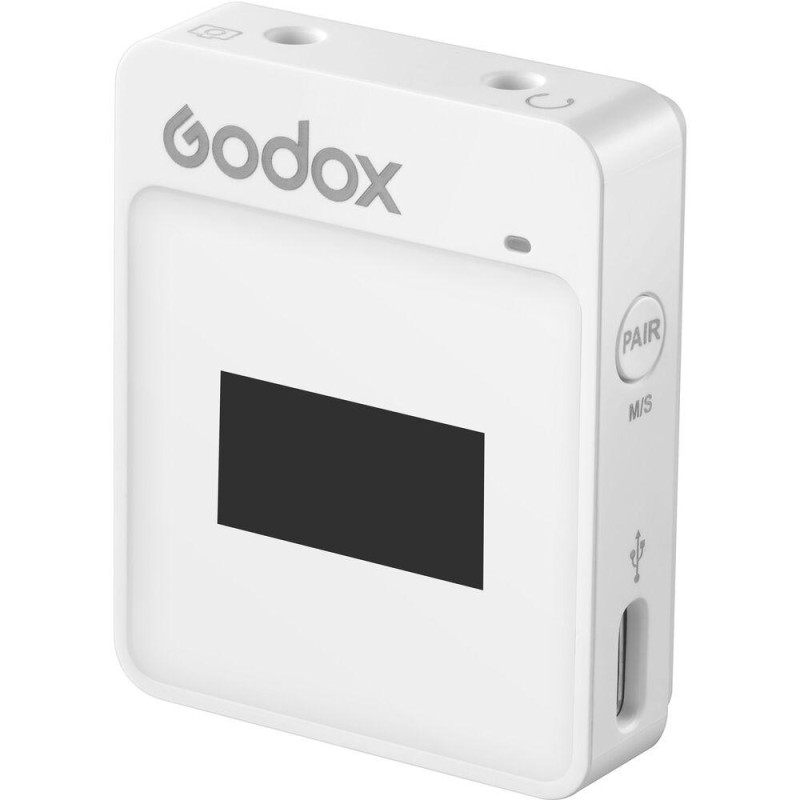

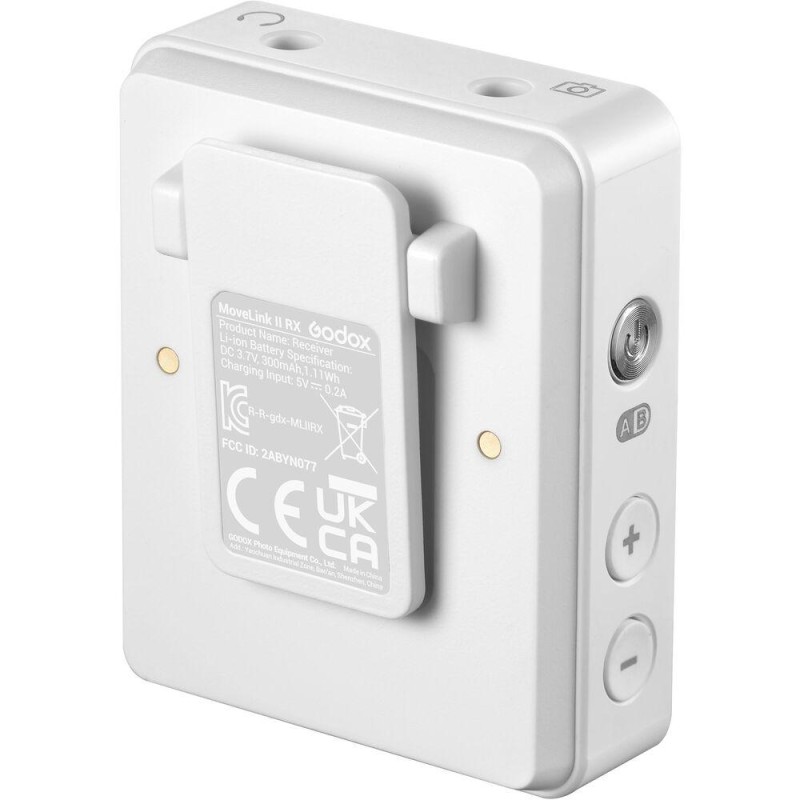

Receiver

Antenna: Internal
Number of audio channels: 2
Audio I/O: 1 x 1/8" / 3.5 mm TRS female balanced/unbalanced microphone input 1 x 1/8" / 3.5 mm TRRS female balanced/unbalanced headphone input
Amplification range: 5 to 10 dB
Frequency range: 50 Hz to 20 kHz
Connectivity: USB C Female (charging)
Power requirements: Battery
Battery type: 1 x built in rechargeable battery (included)
Internal battery capacity: 300 mAh
Battery life: approx. 8 hours
Display & indicators: TFT (battery status, channel, host connection, output level)
Operating temperature:14 to 122°F / 10 to 50°C

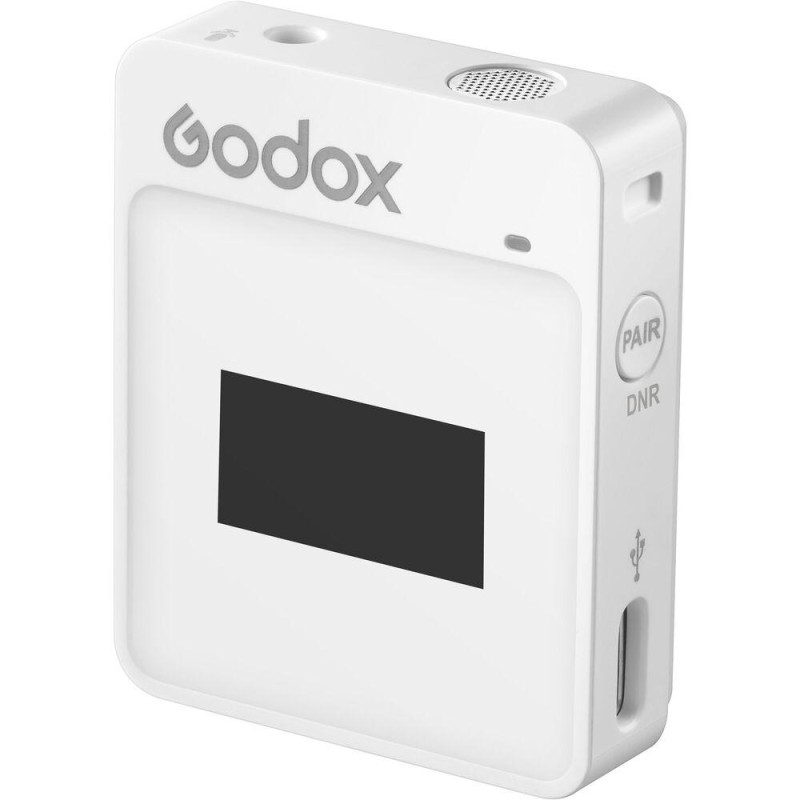

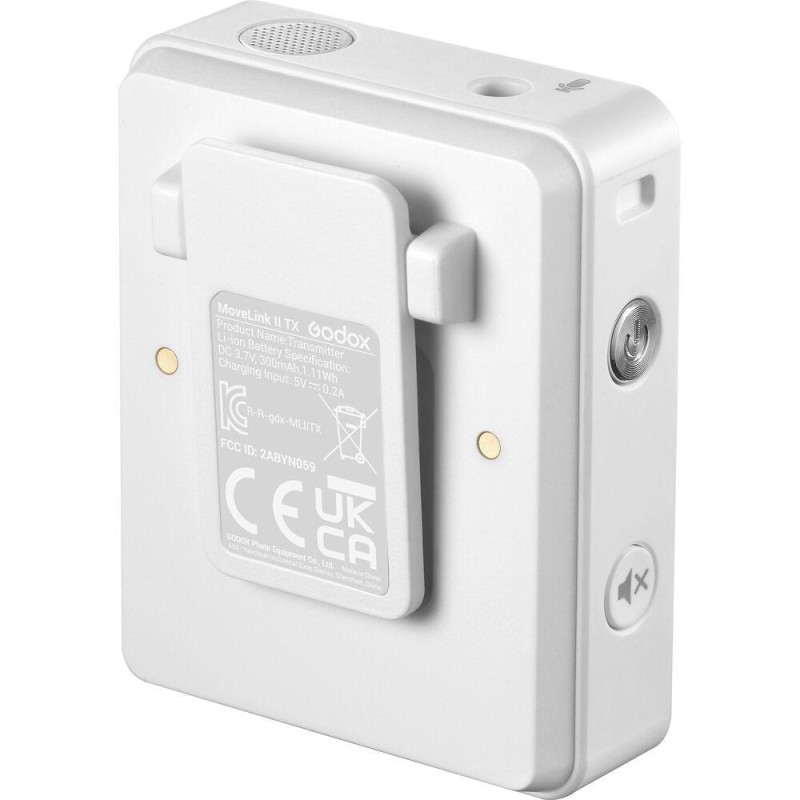

Transmitter

Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Input
Frequency range: 50 Hz to 20 kHz
Synchronisation method: 2.4 GHz QPSK
Antenna: Internal
Power requirements: Battery
Battery type 1 x built in rechargeable battery
Internal battery capacity: 300 mAh
Battery life: approx. 10 hours
USB/Lightning I/O: USB C (charging)
Display & indicators: TFT (battery status, mute, signal strength)
Operating temperature: 14 to 131°F / 10 to 55°C

Microphone

Sound field: Mono, Stereo
Polar Pattern Omnidirectional
Frequency range: 50 Hz to 20 kHz
SNR: 70 dB
Maximum SPL: 110 dB SPL
Sensitivity: 32 dB
Outputs None

Microphone 2

Microphone type: Lavalier
Sound Field: Mono, Stereo
Polar Pattern: Omnidirectional
Outputs: 1 x 1/8" / 3.5 mm TRS Female
,

1x Godox MoveLink II TX (Transmitter
1x Godox MoveLink II RX (Receiver)
1x Omnidirectional Lavalier Microphone
1x 3.5mm TRS to TRRS cable
1x 3.5mm TRS to TRS cable
1x Windshield
2 x magnetic plate
2 x USB C cable
